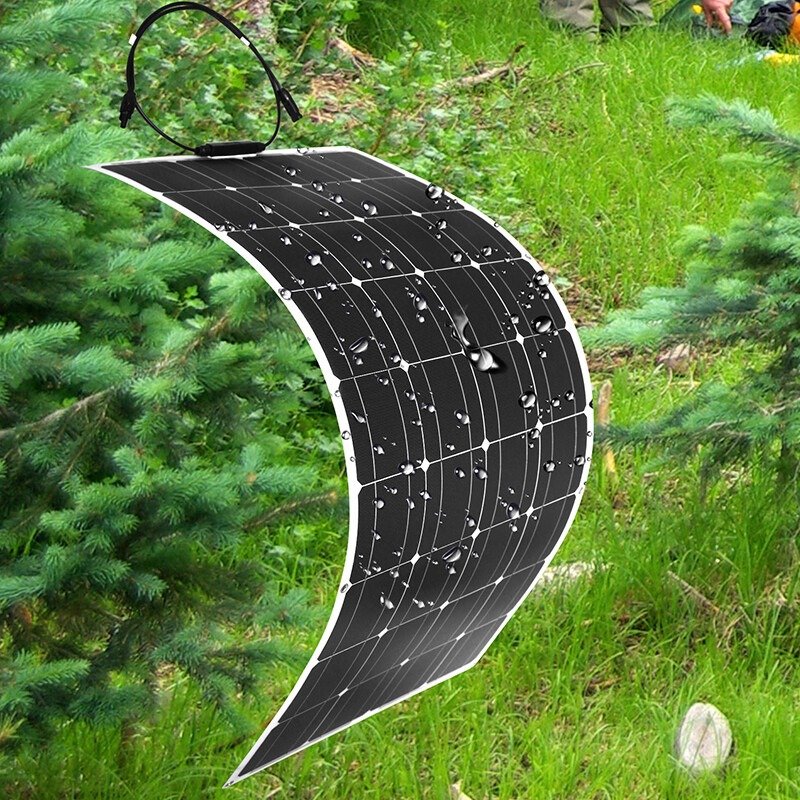

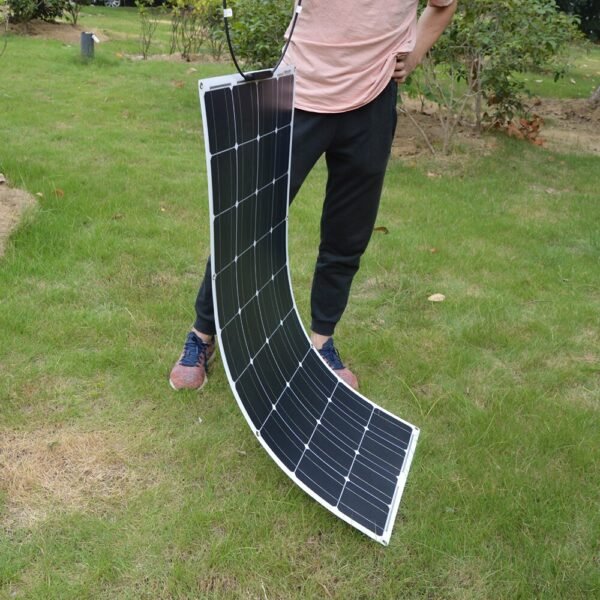

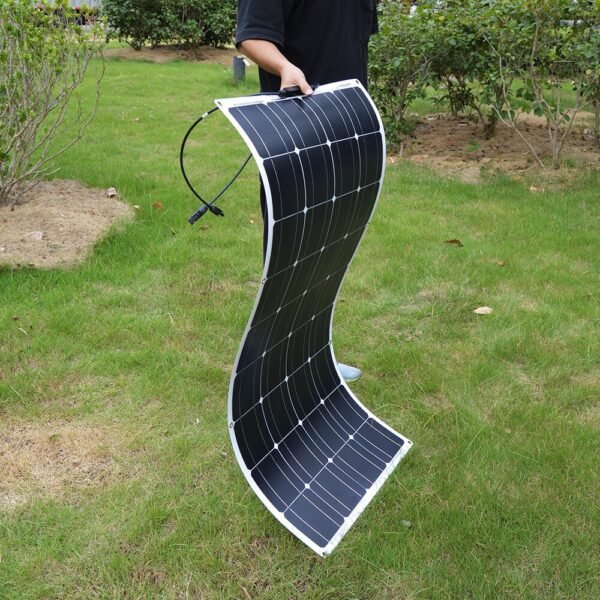

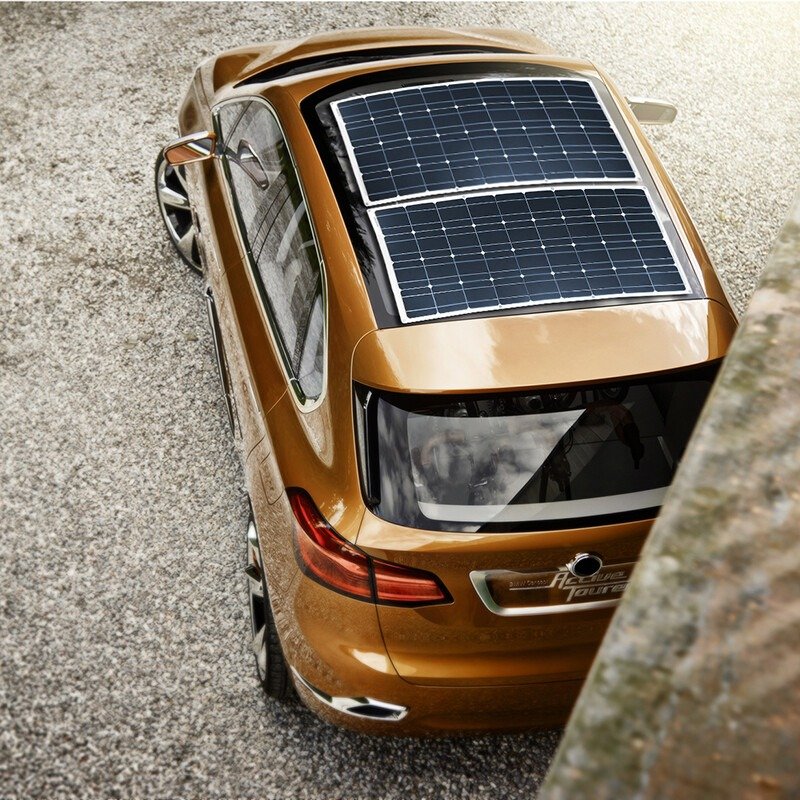

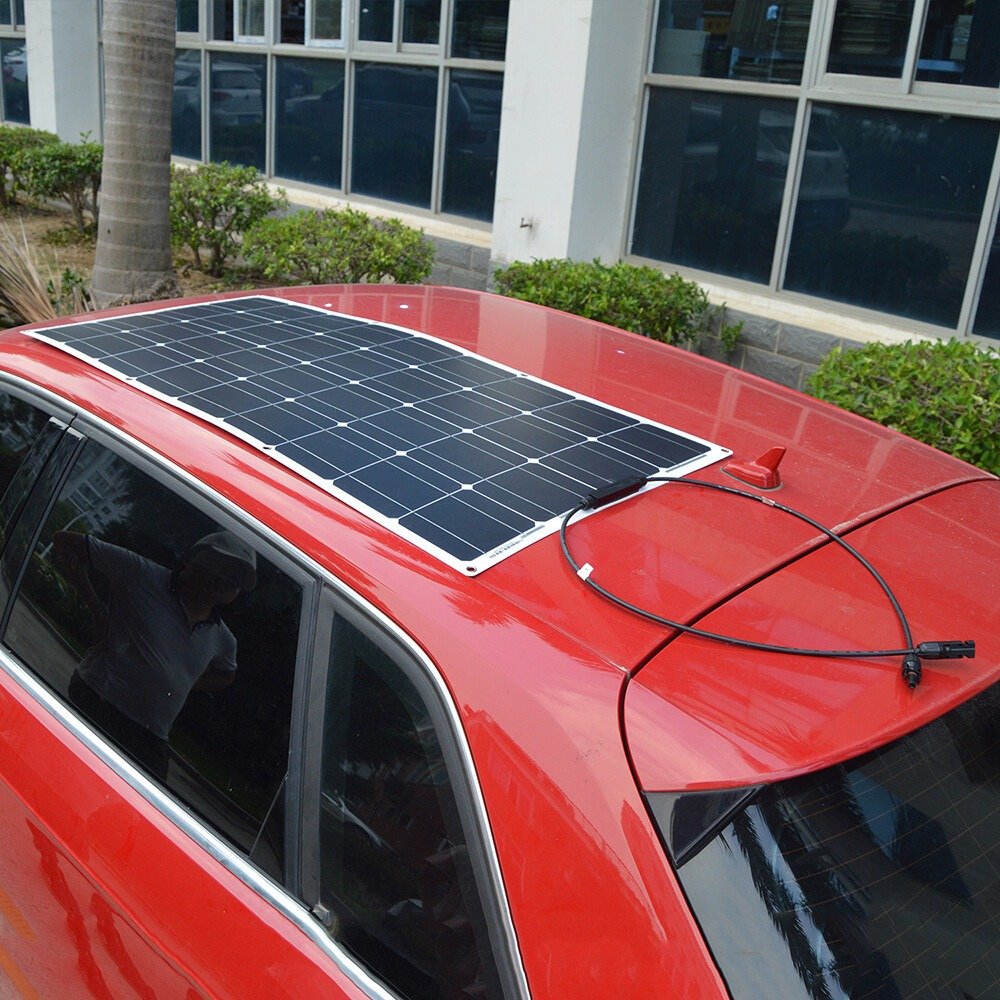

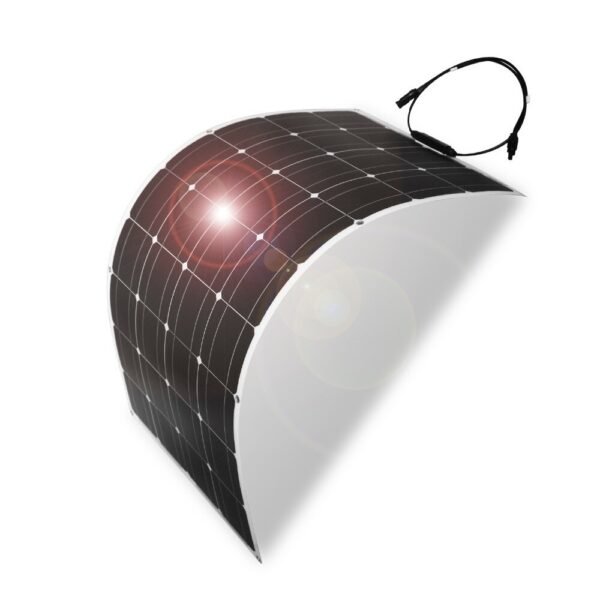

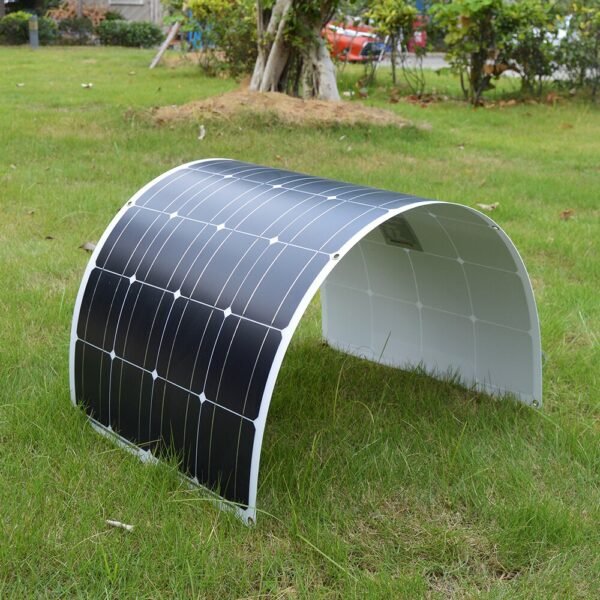

- Easy to Use: Semi-flexible panels can be mounted on uneven surfaces such as RV roofs, boats, tents, vaulted roofs, etc. up to 30 degrees.

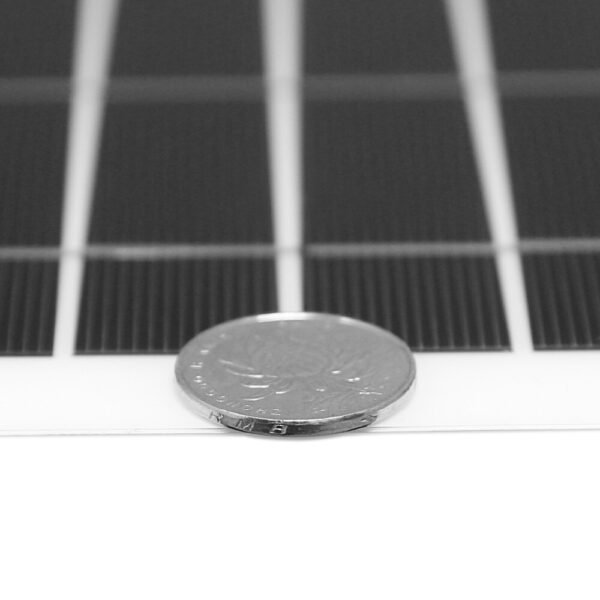

- High efficiency, light weight: Only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.
- Easy to install : Metal holes in the four corners of the product for screw fixing and assembly. Each solar panel has been tested many times.
Technical Details
- Material: monocrystalline silicon
- Maximum power (Pmax): 100W ± 3%
- Maximum power voltage (Vmp):18V
- Maximum power current (Imp):5.56A
- Open circuit voltage (Voc): 22.50V
- Short circuit current (Isc):5.81A
- Nominal operating room temperature.
- Maximum system voltage: DC1000V
- Maximum series fuse: 15A
- (The data above is based on the standard laboratory test environment)
- For field connections, use minimun No.12AWG copper wires insulated to a minimum of 90℃
- Standard test conditions:
- AM = 1.5 irradiance = 1000W/m2 Temp.= 25 ℃
- Material structure:
- 1st floor: ETFE
- 2 floors: EVA film
- 3 floors: high efficiency solar cell
- 4 floors: EVA film
- 5 floors: Backsheet TPT

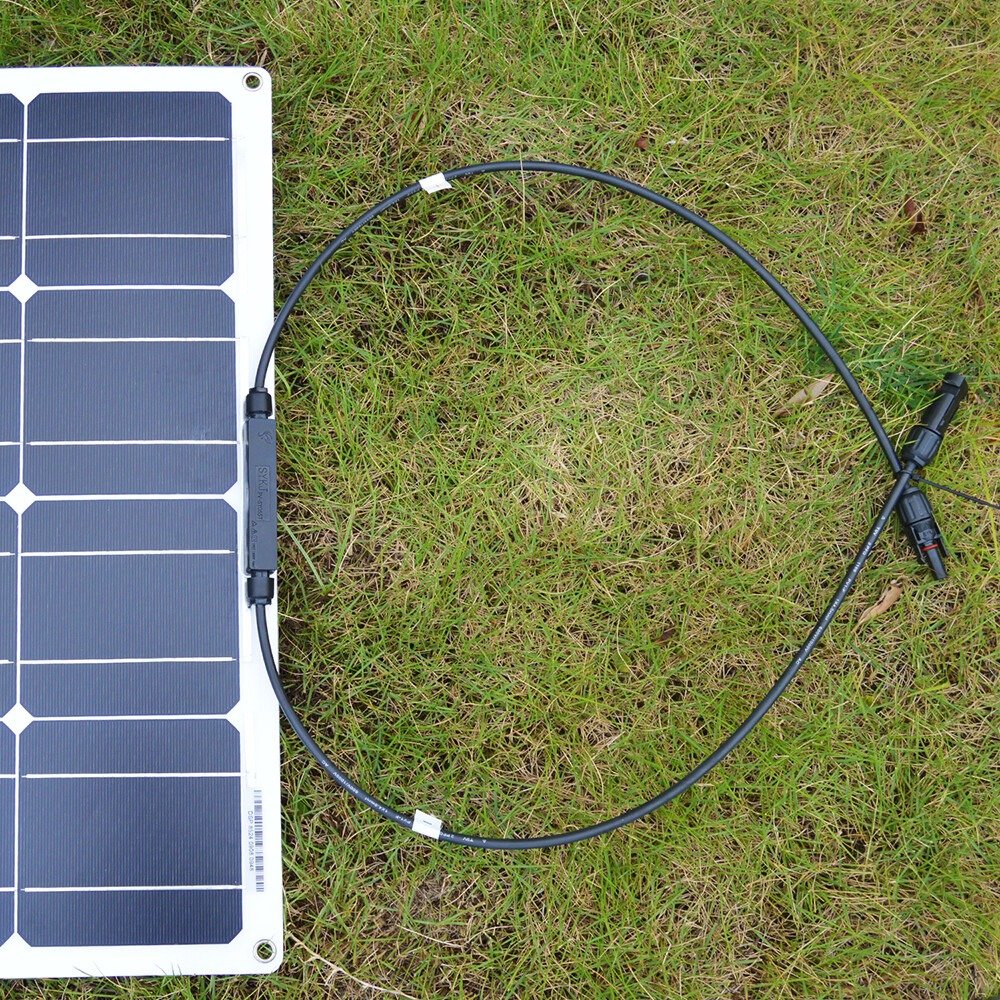

- Waterproof level: IP67 (junction box)
Specifications
- It is customized: Yes
- Maximum power: 100W;200W;400W
- number of cells: 36
- Material: Monocrystalline Silicon
- Nominal capacity: IT IS NOT
- Foldable solar panel: No
- Flexible solar panel: Yes
- Number of panels: 1
- Guy: Solar Panel
- Volt: 22.5V
- Vmpp: 18.00V
- I sc: 5.81A
- The mpp: 5.56A
- Material: ETFE
- Factory Outlet: Yes

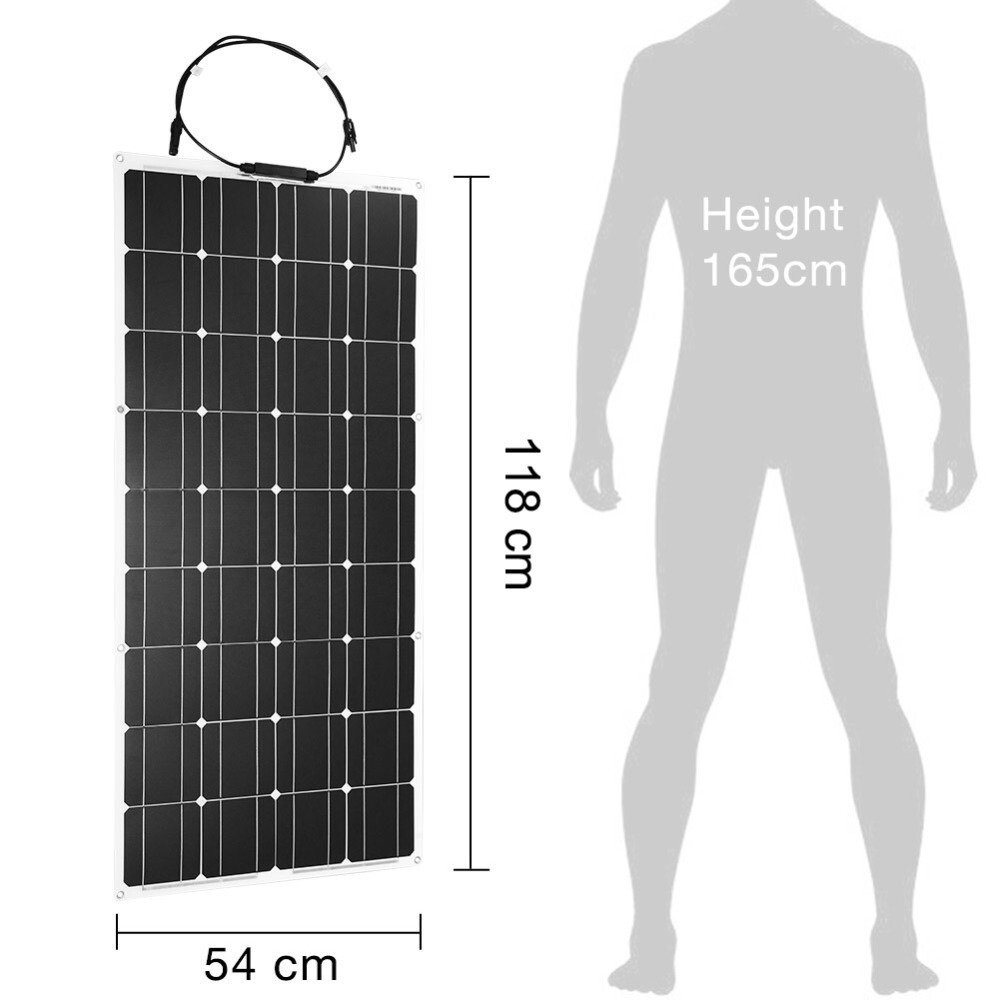

- Old Style Size: 118*54cm
- New Style Size: 97.4*56.5cm
