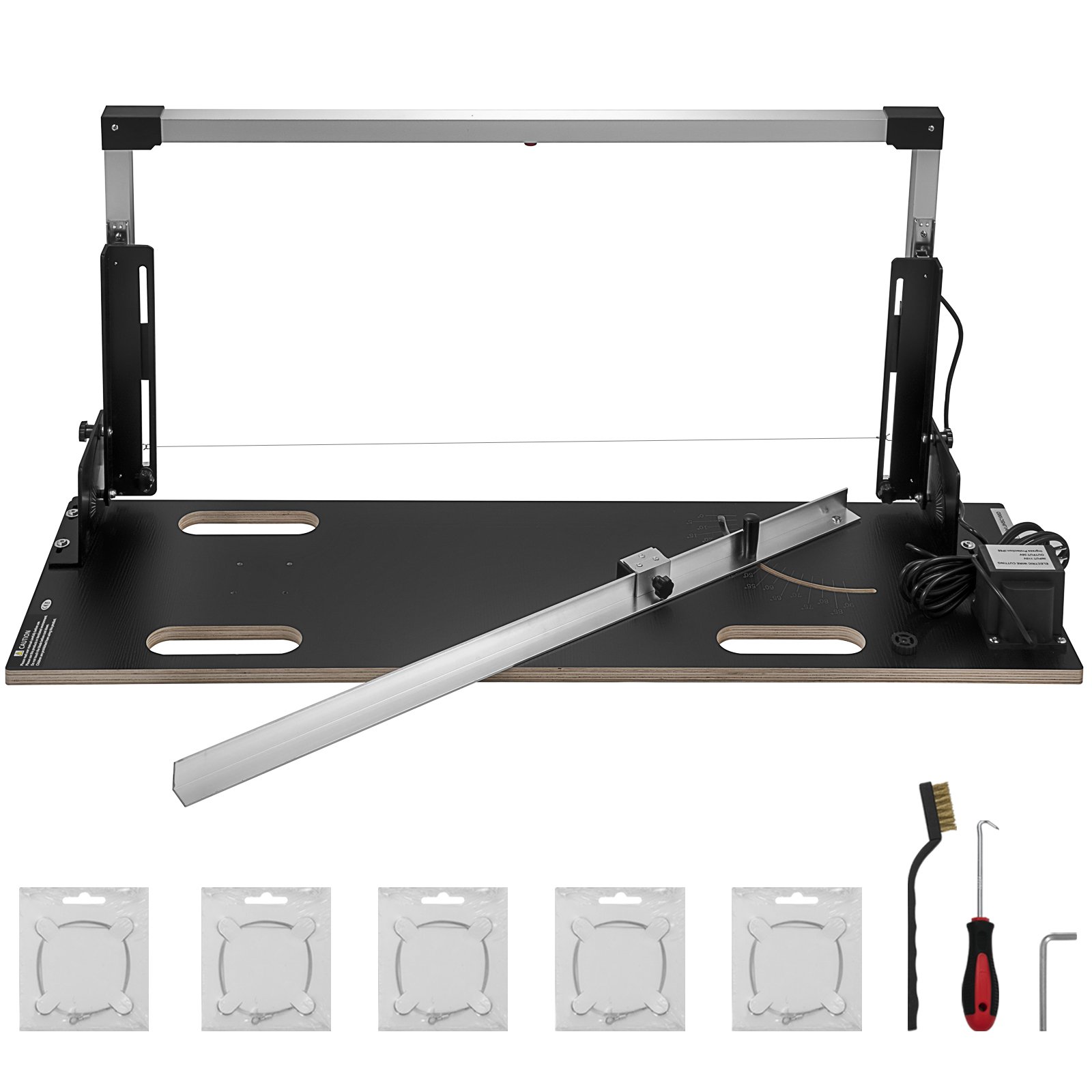

- Cutting insulation panels consisting of Styrodur, Styrofoam, and rigid polystyrene foam is best done with a hot wire cutter. The foam cutter can produce dimensionally accurate cuts, whether straight or at an angle of 0-90°, thanks to its six nichrome heating wires, aluminum alloy frame, and laser engraving workstation.
-
The maximum cutting length for the horizontal and vertical cutters is 55.12 inches (140 cm), and the maximum cutting thickness is 16.54 inches (42 cm), while 40 cm is advised. Bevel cutting angles range from 0-90°. With the leaning ruler, this desktop styrofoam cutting machine may be tilted to one side and used to cut polystyrene materials precisely both horizontally and vertically.
-
Six Nichrome Heating Wires: The high-quality nickel-chromium alloy used to make the 0.02″/0.5 mm heating wire has the properties of high accuracy, high-temperature resistance, and corrosion resistance. Additionally, a spring that independently creates the tension needed for processing is used to place the heating wire.
-
In contrast to other silk-screen printing workbenches, ours uses cutting-edge laser marking technology. Since the scale’s display area has better abrasion performance, you can discover the cutting angle more quickly and precisely to provide more exact cutting.
- Aluminum moveable Frame: The foam cutter machine is made lightweight for easy lifting and carrying on the construction site thanks to the moveable aluminum frame. The cutting bar easily passes through the styrofoam plate because of the ball-bearing guide. Additionally, the pre-assembled stop tabs and the depth limiter allow for precise repeat cuts and stable operation.
-
IP68 Adapter Power Supply: This foam cutting machine has a transformer that has an IP 68 waterproof rating, ensuring proper operation even in inclement weather. This adapter quickly heats the wire to the cutting temperature, making it perfect for cutting materials like foam, sponge, pearl cotton, etc.
Specifications
-
Maximum Cut Thickness: 16.54″ / 42 cm(40 cm is recommended)
-
Bevel Cutting Range: 0 – 90°
-
Maximum Cut Length: 55.12” / 140 cm
-
Heating Wire Material: Gr20Ni80
-
Heating Wire Diameter: 0.02″ / 0.5 mm
-
Input Voltage: 220V
-
Output Voltage: 42V
-
Power: 200W
-
Transformer Waterproof Grade: IP 68
-
Frame Material: Aluminum Alloy
-
Working Temperature: 360℃ / 680℉
-
Item Dimension: 70.08″ x 13.78″ x 5.91″/ 178 x 35 x 15 cm
Package Content
-
1 x Styrofoam Cutter
-
6 x Heating Wires
-
1 x Cleaning Brush
-
1 x Hook Tool
-
1 x Manual
Condition: New
Shipping: Nationwide
Delivery: 2 to 5 business days
We put the needs of our customers first and foremost. Don’t hesitate to contact us for assistance.
